# LS3 Manipulator

Universal manipulator with linear X and Y motions

The LS3 is a versatile universal manipulator, compatible with 3 powered axis's.

**Motorized functionality ensures smooth and precise positioning and prevents unexpected movements with weight is added or removed.**

### Key Features

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png)

 Push button powered vertical motion

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png)

 Base provides 3 motions: X, Y, and Swing

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png)

 48.3" vertical motion gets low enough to dock to handlers and high enough to dock to probers

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png)

 Manual motions require less than 22 lbs. of operator force

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png)

 Twist and tumble motions available in either manual or motorized





![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/slider-arrow-prev.png)

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/slider-arrow-next.png)

## Compatible Testers

The LS3 Manipulator is optimized for test heads up to 300 kgs. Other ATE Test Heads will be investigated as requested.

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png)

**Cohu**

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png)

**National Instruments**

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png)

**Teradyne**

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png)

**SPEA**

 <>

[Find your specific application ](https://www.intest-ems.com/applications?hsLang=en)

![IMG_E1420[1]](https://www.intest-ems.com/hubfs/IMG_E1420%5B1%5D.jpg)

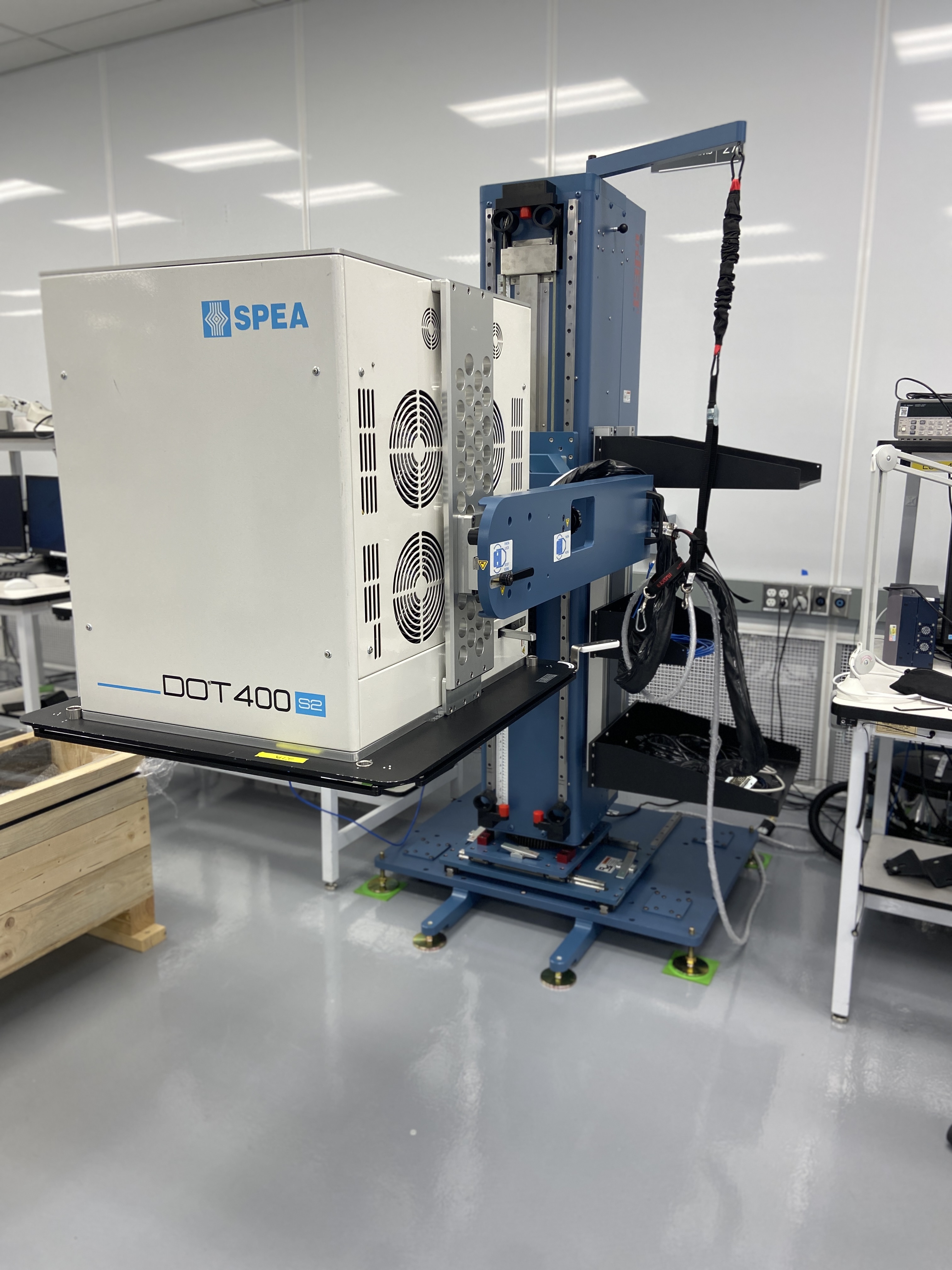

## Universal manipulator with 3 powered axis's

Smaller column depth minimizes space extension, cable routing, and wrapping concerns. Reach is long enough to dock from the rear or side of the peripheral. Hoses and cable exit rear of the test head and are managed into the clamp, which rotates with the head during the twist. The cables are held from a column-mounted swing arm, which can be mounted on the left or right side.

**Available Options:**

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png) Optional hand-cranked or motorized twist or tumble motion

![](https://www.intest-ems.com/hubfs/raw_assets/public/miles-theme/images/checkmark.png) **The LS3 Manipulator is compatible with InTest-designed docking and test interface hardware for seamless MDI ([Manipulator](https://www.intest-ems.com/products/manipulators?hsLang=en), [Docking](https://www.intest-ems.com/products/docking?hsLang=en), [Interface](https://www.intest-ems.com/products/interfaces?hsLang=en)) integration.**

[Download Brochure](https://www.intest-ems.com/ls3-manipulator#modal-brochure)

## Technical Specifications

[

 Collapse Specs

](https://www.intest-ems.com/ls3-manipulator#)

**Example specifications—actual specifications are application specific.**

| **Rated Test Head Weight** | 400 kg. (882 lbs.) |
| --- | --- |
| **Vertical Travel** | 1067 mm (42") |
| **Vertical compliance** | +/- 38 mm  (0.5")  |
| **Side – Side Linear / Compliant Motion** | 114 mm (4.5") |
| **In – Out Linear / Compliant Motion** | 381 mm (15") |
| **Swing** | 186° |
| **Twist** | 186° |
| **Tumble** | 186° |
| **Theta (In Cradle)** | +/- 2.5° |
| **Height on Casters** | 2017 mm (79.4") |
