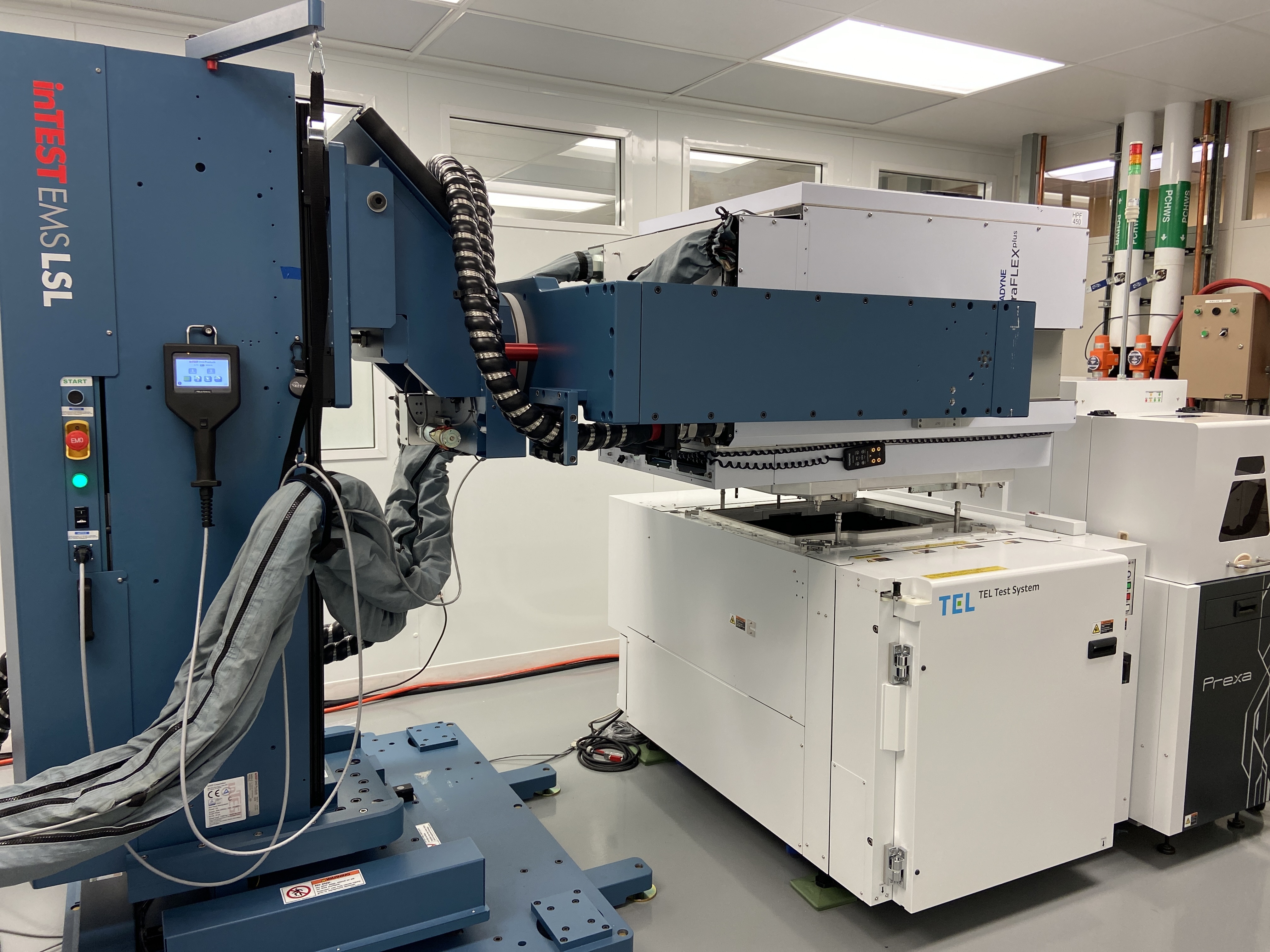

LSL Q24 Manipulator
With a weight capacity up to 1,200 kgs. / 2,645 lbs.
Semi Automated, Fully Featured ATE Manipulator for the UltraFLEXPlus Q24. Eliminate the physical jockeying and positioning of the UltraFLEXPlus Q24..
Enable an intelligent test cell environment to improve the efficiency of the test floor.
Key Features
Programmed to docking position within 0.76mm (.03" ) X, Y, and Z
Increased efficiency through powered movements with very little human intervention once programmed
Robust design ensures safety, durability, and reliable performance in both final test and wafer sort
7 motions motorized and under pendant control (Vertical, X, Y, Swing, Tumble, Theta and Cable Management)
Compatible Testers
The LSL Q24 Manipulator is equipped to handle up to 1200 kg. It supports the Teradyne UltraFLEXplus Q24 test head.
Teradyne UltraFLEXplus Q24
.jpg)
Enables an intelligent test cell environment to improve test floor safety and efficiency.
InMotion manipulator controls technology empowers programmable and automated test head motion from one position to
another:
Production Test A/B: predock and docked positions for wafer sort and final test
Engineering Hand Test (DUT interface access)
Service (ATE instrumentation access for maintenance)
